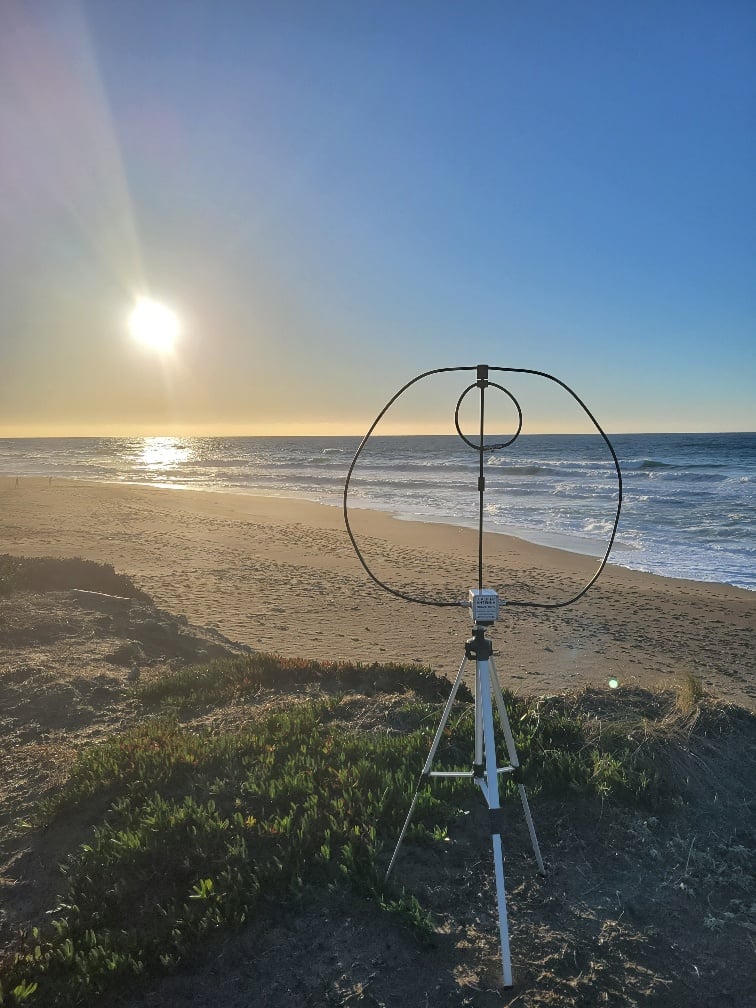

100W 10-40M Portable HF-DLX MagLoop

The 10-40M 100W PEP HF Deluxe (HF-DLX) MagLoop delivers high ERP (Effective Radiated Power) with easy tuning due to the built-in 6:1 reduction drive. Its design rejects off frequency RFI and the shielded Faraday pick-up loop reduces on frequency RFI (Radio Frequency Interference). Use our Make an Offer Program and Click this button if you can’t afford full price. Make An Offer (Without Options) Videos Specifications *100W PEP SSB, 50W CW, and 10W Digital & FM on 10-40 meters ***20 Watts PEP SSB, 10 Watts CW, and 5 Watts Digital & FM on 40-80 meters with the Optional ^40-80 Loop.  ****6 Meter, 2 Meter & 440 MHz when the optional add-on element is purchased & installed. IP Rating: IP-53 – Protected against dust limited ingress, no harmful deposits. Protected against direct sprays of water up to 60 degrees from the Verticle. Environmental operating parameters: -15 to 90 (in direct sunlight) degrees Fahrenheit and winds up to 35 Mph Included 2 – 16 inch masts that couple together with a built-on coax mount 1 – Tuning box with Female 5/8 – 11 mount (Optional 1/4-20 adapter is available for photography tripods) 1 – Outer loop for 10-40M. An optional ^40-80M Loop can be daisy chained in series with the 10-40M outer loop for coverage from 7.0 to 3.5MHz. 1 – Inner shielded faraday loop 1 – Field Bag for the Alpha MagLoop Materials Used The following materials are used in the construction of the Alpha Loop antenna: Gold, Solder, Nylon, Ceramic, Aluminum, Stainless steel, Marine shrink tubing, Times Microwave LMR400, and 3D Carbon Fiber infused polymers. Bandwidths Click Here for the bandwidth and tuned results while using just the Default Outer Loop and Clicking Here for the bandwidth and tuned results while using only the longer Booster cable. Signal Patterns Green = 40 meters, Blue = 20 meters, Red = 10 meters Vert. Elevation Pattern Azimuth Elevation Pattern Loop Differences Alpha Antenna has two different Magnetic Loop antennas. Click Here to learn the differences and similarities between this EmComm Loop and the Model 100W MagLoop. Assistance FAQs: Alpha Loop MagLoop antenna We Listen We are dedicated to improving all of our Portable VHF UHF HF Antennas. Specifications and descriptions are subject to change without notice. 5.0 Based on 103 reviews5 star9999%4 star11%3 star0%2 star0%1 star0% Search1-5 of 103 reviewsMost RecentMost Helpful Protected_User_9ef7dbc8 Verified owner July 4, 2026 100W 10-40M Portable HF-DLX MagLoopVerified review - view originalThe antenna has been working awesome. Full disclosure, I’ve only worked 20m, but that’s because there’s been no reason to change. I bought this, had it delivered in 2-3 days, spent about 10 minutes (most spent re-figuring out my NanoVNA menus) tuning it. First time out, had it at 1.3 SWR. I worked it a few days and had good results. 20M, West Coast US (near San Diego) and had FT8 confirmed QSOs within minutes. A couple days later decided to get it out of the living room, and was a bit more patient tuning. Again in just a few minutes, I had it 1.0 SWR for 20M FT8 (14.074 MHz I believe). Again good contacts. I have it near AC power strip, so I have a feeling when I do a better job moving all AC away it’s going to go nuts.
